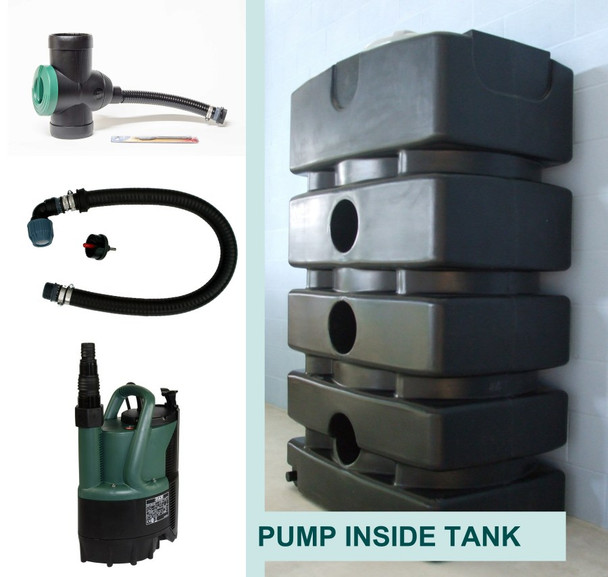

Water Tank and Pump Kit (Pump inside Tank)

Free delivery to UK Mainland.

This Kit includes a powerful submerisble pump and the versatile, space-saving water-tank design of the 1500L Utility Rainwater Tank. The tank gives an enormous rainwater harvesting capacity yet only occupies a 120 x 78cm floor space, 2m high - it fits through a door!

This Pump and Tank kit is designed for permanent installations, installing the Pump inside the Tank offers space-saving advantages and the supplied Float Switch ensures the Pump will turn off when water levels get too low enabling ease of re-start.

Ideal in Rainwater Harvesting Installations where the collecting roof area is no more than 100m².

Kit Components

1500L Utility Tank

1500 Litre (330 gallon) Utility Tank a highly versatile water tank for non potable water. Often used as a Fire Tank (Fire Sprinkler Tank) in  Basements or Commercial Plant Rooms as it's small footprint allows it to fit through standard door ways and down staircases. Also highly recommended to collect Rainwater in above ground Rainwater Harvesting systems.

This Tank has superb industrial strength & proven durability with internal bracing to limit shape flexing. The two 3/4" BSP Threaded ports are Brass lined for extra durability.

The removable lid gives ample access to the inside of the tank

Technical Information:

• Material: Rotational moulded, Seamless, Food-grade Polyethylene (not WRAS approved), 9mm thick, Colour: Black.
• Dimensions: 1200mm wide x 780mm deep x 2000mm high
• Removable Lid Diameter: 460mm
• Weight: 85Kg
• Tap: 1 x 3/4" Plastic High Flow
• Connections:
• 2 x 3/4" BSP Brass Threaded (at one end),
• 2 x DN50 (2") sealed ports (one on either side) for you to drill for a connection suitable for your installation.
• 3 x marked Inlet/Overflow Points (not drilled)
• 5 year Warranty

Calpeda GXRM Pump with Magnetic Float Switch

The Calpeda GXRM Pump is fitted with a space saving Magnetic Float Switch which will turn the pump off if the water level in the tank gets too low. It  has a 9.6m³/h flowrate at a 2m head. It is supplied with 10m of electric cable.

Comes with a 1 year Warranty.

Included Pump Accessories:

• Magnetic Float Switch

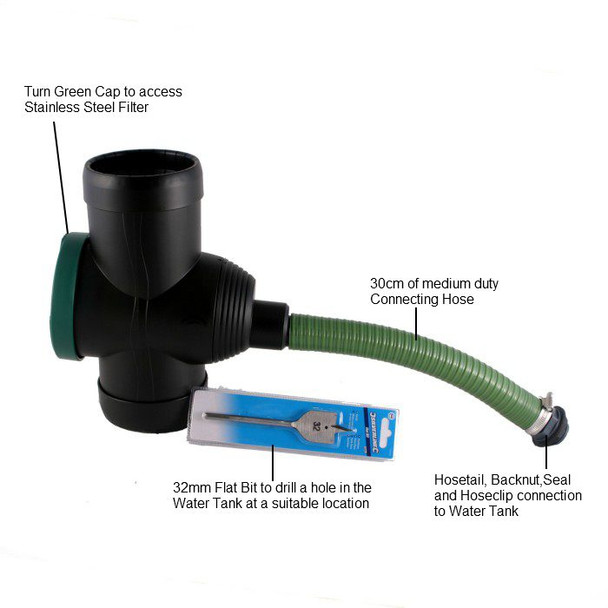

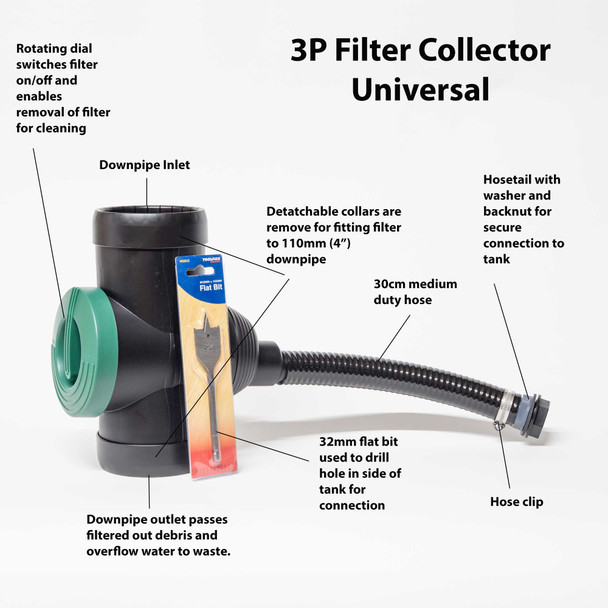

Filter Collector Universal (Black)

The 3P Filter Collector Universal is a Rainwater Diverter with built in filter, overflow and "OPEN/CLOSE" switch settings. Highly efficient, and quick and easy to install following the step by step instructions. It fits all standard UK round downpipes from 68mm to 110mm diameter and square downpipes from 65mm to 75mm without needing to be adapted.

Designed to last, the body is made of Black impact resistant UV-stabilised durable plastic, the filter from Stainless Steel mesh. It is completely frost and weather resistant.

This class leading Rainwater Diverter has a built-in quality stainless steel filter mesh. The mesh removes leaves and debris from your rainwater ensuring that the water entering your Utility Tank is clean before storage. The debris continues on down the downpipe, along with overflowing water when your water Tank is full. The filter is easily removed from the Rain Diverter housing for occasional cleaning with soapy water.

Included Components

• 30cm medium duty flexible hose
• Hosetail
• Backnut
• Rubber Sealing Washer
• 32mm Flatbit drill

Pump to Turret Connector

The 2m Pump to Turret Hose connects the pump outlet of to the turret of your water Utility Tank. A Holesaw and grommet set is included to help you position the hose through the top of the tank at a convenient place (holes are not pre-drilled).

Included Components

• Hosetail adaptors
• Hoseclips in Stainless Steel
• 50mm Tank Seal/Grommet
• Holesaw Set

Documentation

Installation Notes: Pump Inside the Tank Standard (pdf).

Other Versions

• 1500 Litre Utility Tank on it's own.
• Water Tank Kit with Portable Pump outside the Tank.
• Water Tank Kit with Professional Pump inside the Tank.
