1500 Litre Water Tank System with External Pump


Prices include VAT

Out of Stock. More expected around the 2nd Aug 2021. Please pre-order or contact us for alternatives.

Product Description

Water Tank and Pump Kit (Pump outside Tank)

Free delivery to UK Mainland.

This Kit combines the power of the SteelPump XAJE80P garden pump and the versatile, space-saving water-tank design of the 1500L Utility Rainwater Tank. The tank gives an enormous rainwater harvesting capacity yet only occupies a 120 x 78cm floor space, 2m high - it fits through a door!

The Kit is designed for instances where you do not need a permanent connection to the Pump. The Pump can be easily disconnected from the Tank using the brass shut off valves supplied in the Pump to Tank Connector component.

Ideal in Rainwater Harvesting Installations where the collecting roof area is no more than 100m2.

Kit Components

1500L Utility Tank

1500 Litre (330 gallon) Utility Tank a highly versatile water tank for non potable water. Often used as a Fire Tank (Fire Sprinkler Tank) in  Basements or Commercial Plant Rooms as it's small footprint allows it to fit through standard door ways and down staircases. Also highly recommended to collect Rainwater in above ground Rainwater Harvesting systems.

This tank has superb industrial strength & proven durability with internal bracing to limit shape flexing. The two 3/4" BSP Threaded ports are Brass lined for extra durability.

The removable lid gives ample access to the inside of the tank

Technical Information:

  • Material: Rotational moulded, Seamless, Food-grade Polyethylene (not WRAS approved), 9mm thick, Colour: Black.
  • Dimensions: 1200mm wide x 780mm deep x 2000mm high
  • Removable Lid Diameter: 460mm
  • Weight: 85Kg
  • Tap: 1 x 3/4" Plastic High Flow
  • Connections:
    • 2 x 3/4" BSP Brass Threaded (at one end),
    • 2 x DN50 (2") sealed ports (one on either side)
    • 3 x marked Inlet/Overflow Points (not drilled)
  • 5 year Warranty

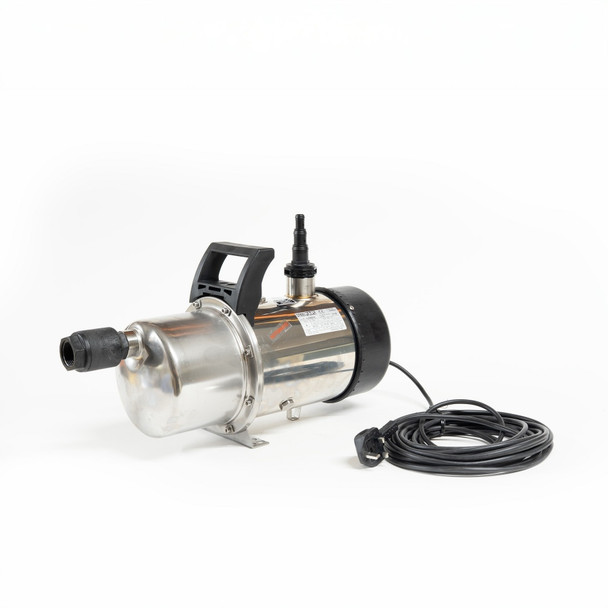

XAJE80P Portable SteelPump

A professional quality automatic 4 bar pump with stainless steel motor body and 0.8hp motor. Fully waterproof (IP68), submersible and self-priming. Ideal for domestic and garden non-potable water supply.

Use rain water to supply drip irrigation systems as well as conventional hose guns and sprinklers with this self-priming garden pump. A great way to be more water efficient by using rainwater to irrigate the plants in your garden or for washing your car, the XAJE80P intelligent pump responds to pressure in the delivery pipe. It turns itself on when there is a demand for water, then switches off again automatically once the demand has been met.

This automatic pump comes, as standard, with anti-blocking system and dry run protection with automatic restart. It also comes with a Non-return Valve (NRV) that you screw into the water inlet before you connect the Pump to Tank Connector.

It is very quiet in use. Their extremely low noise and vibration levels are due to the use of larger, smoother running motor components, a single piece rotor shaft, and a 360 degree water jacket surrounding the motor. Noise Absorption is maximised, making them far more pleasant to live with than a traditional air-cooled pump. This water cooled design and stainless steel stator housing remove heat from the motor faster than any other type of design. Unlike air and oil cooled pumps, which warm up quickly in hot rooms and sunny positions, increasing susceptibility to stress and fatigue, SteelPumps stay as cool as the water they are pumping.

For Technical Information see the XAJE80P Garden Pump page.

Comes with a 2 year Warranty.

Included Pump Accessories:

  • Handle
  • Multi-hose reducer
  • Non-return Valve

Filter Collector Universal (Black)

The 3P Filter Collector Universal is a Rainwater Diverter with built in filter, overflow and "OPEN/CLOSE" switch settings. Highly efficient, and quick and easy to install following the step by step instructions. It fits all standard UK round downpipes from 68mm to 110mm diameter and square downpipes from 65mm to 75mm without needing to be adapted.

Designed to last, the body is made of Black impact resistant UV-stabilised durable plastic, the filter from Stainless Steel mesh. It is completely frost and weather resistant.

This class leading Rainwater Diverter has a built-in quality stainless steel filter mesh. The mesh removes leaves and debris from your rainwater ensuring that the water entering your Utility Tank is clean before storage. The debris continues on down the downpipe, along with overflowing water when your water Tank is full. The filter is easily removed from the Rain Diverter housing for occasional cleaning with soapy water.

Included Components

  • 30cm medium duty flexible hose
  • Hosetail
  • Backnut
  • Rubber Sealing Washer
  • 32mm Flatbit drill

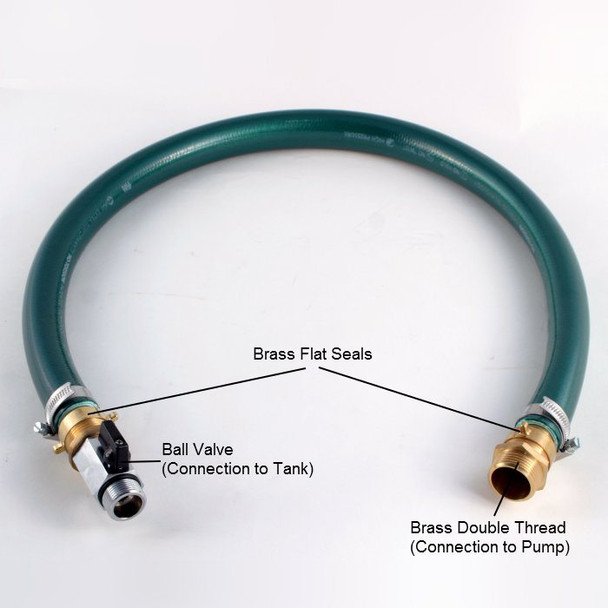

Pump to Tank Connector (1m)

This superb Pump to Water Tank connector enables a water tank to be connected to a pump without any loss of water.

Easy to install simply, fit the brass shut off valve to the lowest port in your water tank and turn to the off position. When you want to pump the water, connect the connecting hose to the valve at one end, and the other to the pump's inlet. The brass Flat Seals at either end of the hose make this a really easy job, simply swivel the seals (rather than the whole hose) to tighten on to the threads.

The connector comes fully assembled ready for DIY Installation. Connects: 3/4" BSP Threaded Tank outlets to 1" BSP Threaded Pump inlets.

Included Components

  •  1 x 3/4" Brass Shut off Valve (Ball Valve)
  •  2 x Brass Flat seal Hosetails
  •  2 x Stainless Steel Hoseclips
  •  2 x Brass Double Nipples
  •  1m Medium Duty Hose

Other Versions

  • Utility Tank on it's own.
  • Water Tank Kit with Professional Pump inside the Tank
  • Water Tank Kit with Standard Pump inside the Tank
