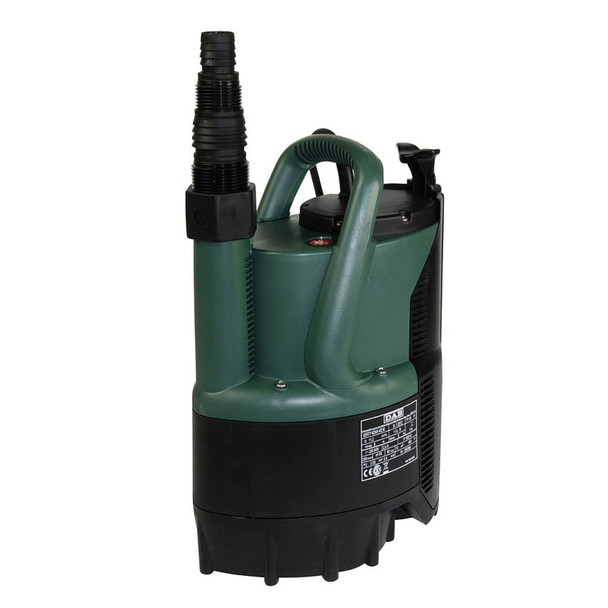

DAB Verty Nova 400M Submersible Sump Pump – Automatic Drainage & Rainwater Pump (230V)

The DAB Verty Nova 400M is a compact, high-performance submersible sump pump designed for automatic drainage, flood control, and filtered rainwater pumping in domestic and light commercial applications across the UK. Built for reliability in tight spaces, this automatic water pump is ideal for sumps, basements, cellars, and rainwater harvesting tanks, even where access is restricted.

With its slim vertical design, the Verty Nova 400M operates in narrow chambers as small as 20 x 20 cm, making it perfect for modern drainage systems and rainwater harvesting tanks.

It can be used in either Automatic or Manual operation.

The integrated float switch ensures fully automatic operation—activating when water levels rise and switching off once the area is drained.

When switched to Manual operation the Verty Nova 400 the suction level of the pump will be down to 2-3 mm from ground level.

Engineered with durable, corrosion-resistant materials, including a tough technopolymer body and stainless steel components, this submersible drainage pump is suitable for clean water and filtered rainwater, as well as slightly dirty water containing small particles (up to 5 mm).

Delivering a maximum flow rate of up to 180 litres per minute and a maximum head of 9 metres, the DAB Verty Nova 400M provides powerful and efficient water removal. It also features a manual override function, allowing near-complete drainage down to just 2–3 mm, ideal for clearing residual water after flooding or emptying tanks.

Key Features:

• Automatic submersible sump pump with built-in float switch
• Designed for filtered rainwater pumping and domestic drainage
• Compact footprint (fits 20 x 20 cm pits) – ideal for tight installations
• High performance: up to 180 L/min flow rate and 9m head
• Suitable for clean water, filtered rainwater, and light debris (≤5 mm)
• Low-level suction (2–3 mm) for near-dry emptying
• Manual and automatic operation modes
• Thermal overload protection for motor safety
• Efficient motor cooling, even during partial submersion
• Corrosion-resistant construction for long service life
• Supplied with 10m cable and UK plug for easy installation

Typical Applications:

• Basement and cellar drainage
• Sump pump installations
• Filtered rainwater transfer from harvesting systems
• Flood water removal in garages and properties
• Water tanks, sumps, and inspection chambers
• General domestic water transfer and garden use

Why Choose the DAB Verty Nova 400M?

The DAB Verty Nova 400M sump pump is a trusted solution for UK homeowners and installers needing a reliable automatic drainage pump that performs in confined spaces. Its ability to handle filtered rainwater systems, combined with compact design, strong performance, and near-dry pumping capability, makes it a versatile choice for both everyday use and emergency situations.

Technical Information

• Pumped liquid: dirty water (up to 5mm in size) without fibres
• Max flow:
• Max Head: 9m
• Float Switch: Built-in (for automatic mode)
• Outlet Size: 1.25" (supplied as standard with a multi-hosetail reducer)
• Dimensions: 158mm x 225mm x 354mm high (not including multi-hosetail connector)
• Weight: 5.1Kg
• Waterproof protection rating: IP68
• Liquid temperature range: +0°C to +35°C
• Maximum depth: 7m (23ft).
• Cable Length: 10m H05RN-F Cable

Documentation

• DAB Verty Nova Technical Sheet (pdf)
• DAB Verty Nova Installation and Operating Instructions (pdf)
