Fast Water Tank or Cistern Fill with this Ballcock Float Valve Alternative

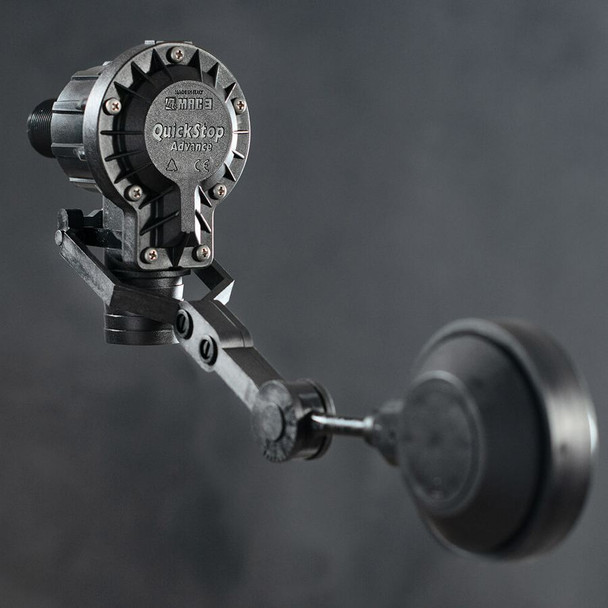

QuickStop float valves are hydraulic water level regulators with a hydraulically operated closure.

Designed as a replacement to conventional ballcock valves in water tanks to protect booster pumps, the QuickStop goes instantly from fully open to fully closed, preventing repeated stop/start cycling of pumps when filling tanks or cisterns. This makes the pump more efficient, saves energy and wear and tear on the pump.

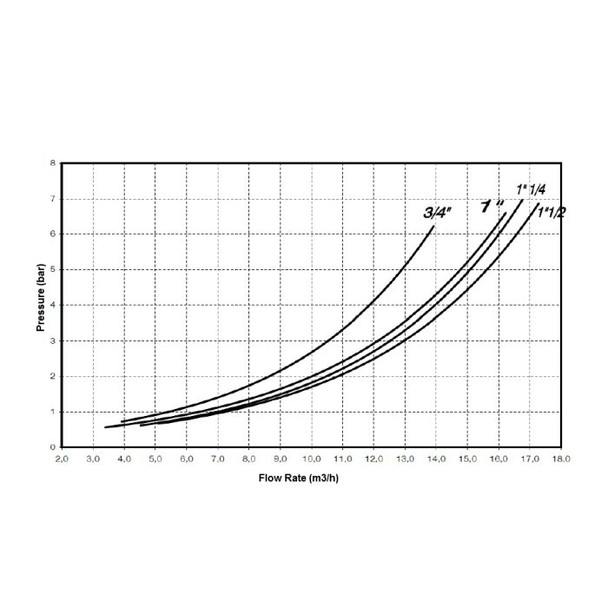

QuickStop has a very high flow rate allowing rapid filling with minimal pressure loss.

Available in five different sizes, 0.5", 0.75", 1", 1.25" and 1.5" BSP Connections.

It has not been WRAS tested, so is currently only available for non-potable water installations.

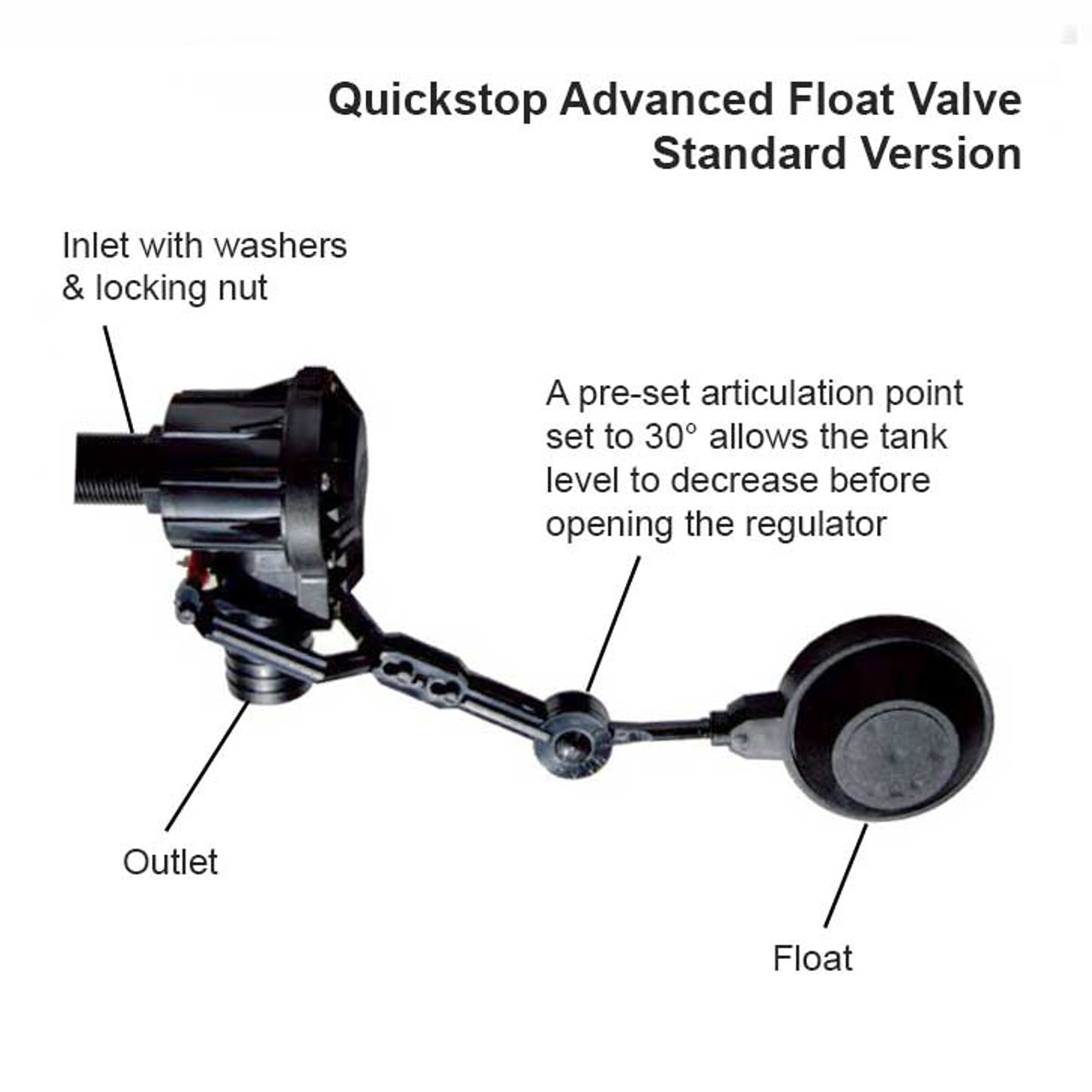

Locking lever easily sets the minimum and maximum tank liquid levels. For Quickstop valves which also have an adjustable arm length see our QuickStop Advance - Adjustable range.

Can be used in water tanks, toilet cisterns, roof tanks, header tanks instead of a ballcock and float valve.

When water is drawn from the tank, the QuickStop has a delayed re-start level of approximately 3cm, which further reduces the stop/start frequency of the pump.

What does the QuickStop size refer to?

The size refers to the connections. The Inlet is a BSP sized male thread (the outlet is a male barbed fitting)

* BSP sizes are the nominal bore of the fitting not the measurable thread size, which will always be larger.

** note if drilling a new hole to put inlet through, the instruction manual says to drill 2mm larger.

Technical Information

Specification:

• BSP Connection: 1/2", 3/4", 1", 1 1/4", or 1 1/2"  see options above.
• Operating Pressure: 0.2 to 6 bar
• Max Pressure: 15 bar
• Bursting Pressure: >20 bar
• Operation: Continuous
• Operating Temperature: 0 to 50^oC
• CE Mark

Materials:

• Body: ABS and Nylon
• Float: Polypropylene
• Levers: ABS
• Membrane: Rubber SEBS
• Colour: White for 0.5", Black for all other sizes
• Screws: Stainless Steel

Documents

• QuickStop Advance - Standard Version Brochure (pdf).
• QuickStop Manual (pdf).

Included Components

• QuickStop Advance Float Valve (Standard)
• Mesh Filters (optional)
• Washers and Nut
• Installation Instructions
