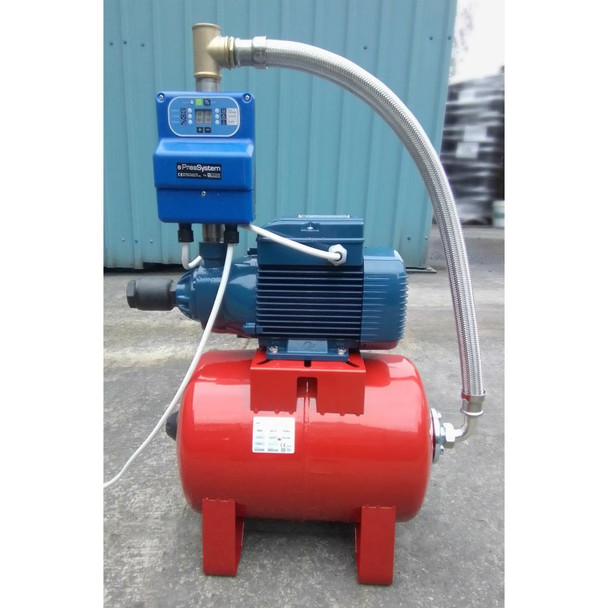

High Pressure Booster

The CBEPKM200 is a compact, powerful pressure boosting solution for domestic and light commercial use. It is particularly suited to installations with undersized existing pipework. Ideal for farms and agricultural use where the MDPE pipework is already installed.

Best fitted on 1" MDPE pipework to achieve maximum flow, however can also be installed to increase flow on  3/4" MDPE where a standard boosting system has either failed or will not product sufficient flow. A potentially cheaper solution compared to increasing the pipe size on all the installed pipework.

This pressure booster is fitted with a quality air-cooled pump for pumping clean water only. The pump is pre-set to run up to 8 bar pressure which is the typical maximum rating for most MDPE pipe. The pump is well suited to installations where high friction losses from existing pipework would otherwise result in insufficient flow, and so increased pressure is required to maximise the flow rate.

Features:

• Digital Start/Stop PressureControl
• LED Display Shows System Pressure & Pump Status
• Electronic Dry Run Protection
• Optional Float Switch Input For Additional Dry-Run Prevention
• Discharged Pressure Vessel Alert
• Thermal Protection
• Continuous Duty
• Pressure up to 8 Bar
• Flow Rates up to 80 Litres/min
• 24l Pressure Vessel
• Single Phase 230VAC

The maximum flow rate you could expect through undersized pipework is 80l/min. Contact us if you need a higher flow rate or if your MDPE pipe is larger.

This Compact Booster Set includes an advanced electronic controller that manages both the start and stop pressure of the pump as well as monitoring the motor current and state of the pressure vessel, resulting in greater efficiency, reduced temperatures and minimal maintenance when compared to a standard pressure switch. You can also adjust the start and stop pressures to suit the installation.

System pressure and status are continuously displayed on a highly visible 7-segment LED display, as well as any fault or alert notifications.

Failure or discharged status of the pressure vessel is immediately detected and the pump is shut down to prevent damage. Dry run protection is by pressure loss and CosPhi monitoring. Dry running can be further prevented by the optional use of a float switch.

Overcurrent detection prevents excess damage in the event of a blockage of the impeller or seizure of the pump motor.

IMPORTANT: This air-cooled pump needs adequate ventilation and should be installed in a sheltered location away from adverse weather.

Supplied with 3m mains cable. Longer lengths are available. Contact us to discuss this before ordering.

Technical Details

• Max Pressure: 9 bar
• Max Flow: 80l/min
• Ambient Temperature: min 2^oC, max 40^oC
• Pumped Water Temperature: min 2^oC, max 60^oC
• Pumped Fluids: Clean Water
• Inlet 1" FBSP
• Outlet: 1" FBSP
• Duty: Continuous
• Power: ~1 230
• Current: 11.5
• Cable length: 3m (longer lengths available - contact us)

Documentation

CBEPKM200 Compact Pressure Booster Brochure (pdf).
