A professional quality automatic 4.9 bar pump with stainless steel motor body and 1.2hp motor. Fully waterproof (IP68), submersible and self-priming. Ideal for domestic and garden non-potable water supply. This powerful pump can withstand total submersion in water or can be externally connected to a tank or large above ground water butt. Waterproof therefore very safe to use in the garden (IP68).
Use stored water and rain water to supply drip irrigation systems as well as conventional hose guns and sprinklers with this self-priming garden pump. A great way to be more water efficient by using rainwater to irrigate the plants in your garden or for washing your car.
With a high pressure of 4.9bar this pump provides a higher pressure than the average UK tap pressure, although actual performance does depend on the length and diameter of the watering hose that you use.
Flow rate up to 60l/min.
The XAJE120B intelligent pump responds to pressure in the delivery pipe. It turns itself on when there is a demand for water, then switches off again automatically once the demand has been met.
Ideal for:
- Domestic water boosting,
- Rainwater harvesting,
- Surface irrigation,
- Tank transfer,
- Above ground tanks,
- Garden water butt
- Submersed surface and underground installation.
- Occasional seawater duty - see Pumping Seawater blog post.
This automatic pump comes, as standard, with anti-blocking system and dry run protection with automatic restart. It also comes with a Non-return Valve (NRV) that you screw into the water inlet.
It is very quiet in use. Their extremely low noise and vibration levels are due to the use of larger, smoother running motor components, a single piece rotor shaft, and a 360 degree water jacket surrounding the motor. Noise Absorption is maximised, making them far more pleasant to live with than a traditional air-cooled pump. This water cooled design and stainless steel stator housing remove heat from the motor faster than any other type of design. Unlike air and oil cooled pumps, which warm up quickly in hot rooms and sunny positions, increasing susceptibility to stress and fatigue, SteelPumps stay as cool as the water they are pumping.
This is a clean water pump which means that collected rainwater needs to be filtered before it enters the pump. This can either be done when collecting the water using a quality downpipe diverter that also filters the water, like the 3P Filter Collector Universal, before it enters your rainwater storage vessel.
Pump Warranty
This is a high quality professional pump that comes with a 2 year warranty when properly installed. SteelPumps are designed to be serviceable long into the future with common service components located behind an easy to remove electrical cover. The capacitor, pressure switch, flow sensor and control unit are all easily accessed.
Pump Repairs and Servicing
Disassembly of the entire pump is straightforward using basic tools, and ALL parts, including nuts and bolts, are available to order individually from the manufacturers website: wwww.steelpumps.co.uk. There are no corrodible mechanical parts within the pump, no potted electronics, no crimped wiring (everything unplugs). Service diagrams and information provided on request.
While other brands are ‘production engineered’ to be assembled fast and never taken apart, Steelpumps can be maintained for as long as spares are made. They are designed to last.
Optional Extras
Floating Intake Filter
If being used as a submersible pump in a tank we highly recommend fitting the pump with a Floating Intake Filter. This will ensure the cleanest water is pumped from the tank.
Float Switch
A float switch floats in the water of the water-tank and as the water drops and rises either activates or de-activates the pump. We can pre-fit this to your pump, please contact us for details, or it can be ordered seperately.
Pressure Vessel
We highly recommend you fit a pressure vessel to the water delivery pipework (after the pump). Pressure Vessels help increase the life of your automatic pump when there are leaks in your pipe network/taps. Read more about how Pressure Vessels work.
Technical Information
- Pumped liquid: Clean cold water without abrasives or solids.
- Motor: 1.2hp.
- Flow Rate: up to 60L/min
- Max bar: 4
- Inlet Size: 1"
- Outlet Size: 1.25"

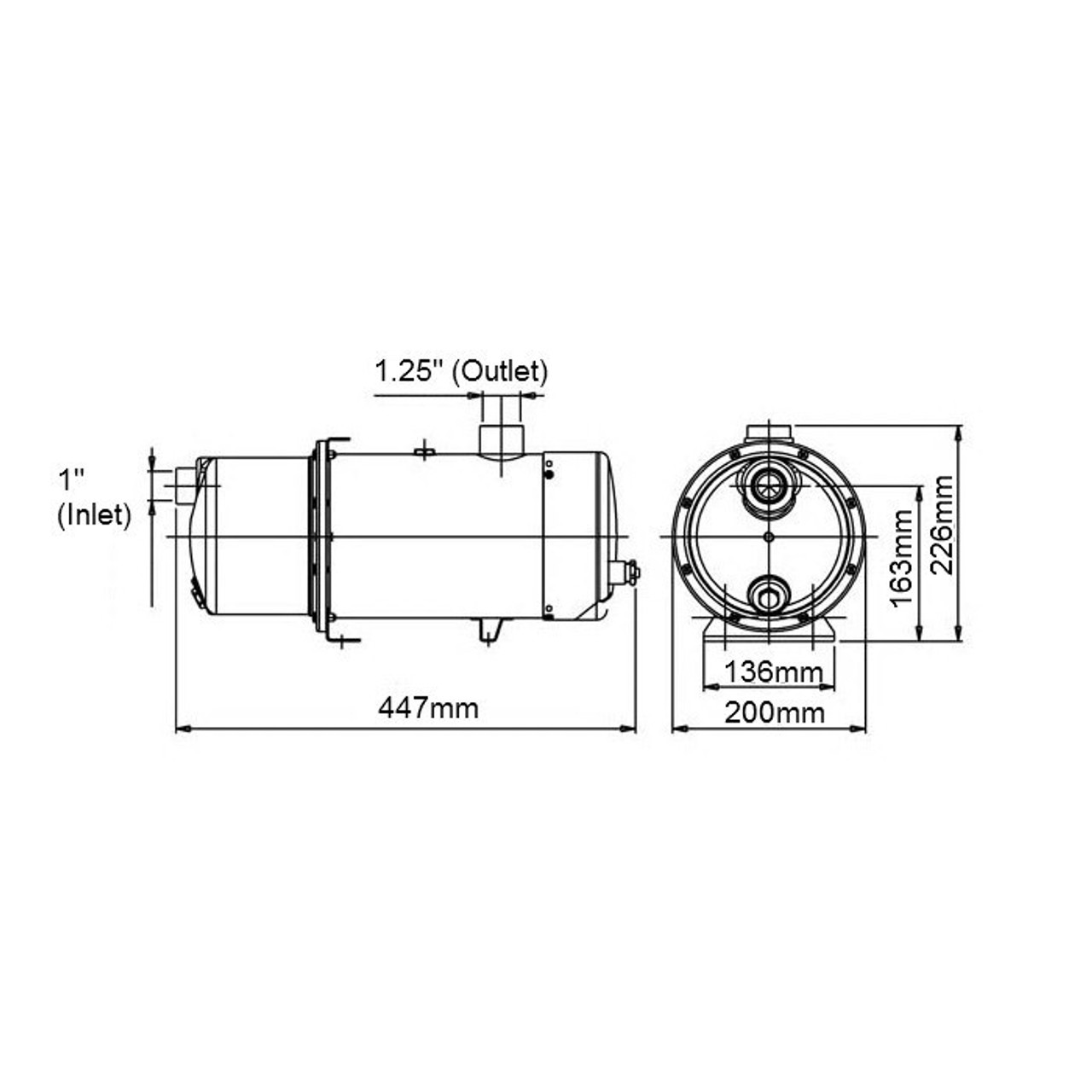

- Dimensions: 447mm long x 200mm wide x 226mm high
- Weight: 13Kg
- Waterproof protection rating: IP68
- Pump Type: Water cooled, single stage impeller/diffuser with venturi.
- Motor Body: Stainless 304.
- Rotor Shaft: Stainless 420.
- Supporting Flanges: Polypropylene.
- Impeller, Diffuser and Venturi: Noryl.
- Liquid temperature range: +2°C to +37°C.
- Air temperature: max +45°C.
- Maximum depth: 5m.
- Calibrating pressure rate switch: 1.5 bar.
- Cable Length: 10m with plug.
Documents
Included Components
- SteelPump
- Non Return Valve (NRV)
- 10m Cable with plug
- Full Installation Instructions
Other uses
This pump can also be installed:
Other Versions
This pump build is also available with a different motor:
- 0.8hp - XAJE80B - for domestic portable and garden use.
It is also available with different build properties:
FAQs
What is the difference between the "P", "B" and "PRO" versions of SteelPumps?
The "P", "B" and "PRO" suffixes of the SteelPump range of intelligent pumps refers to the build properties of the pumps. Essentially;
- P = Designed primarily for portable and garden use.
- B = Designed for domestic and light commercial use.
- PRO = Extensive use of stainless steel and brass within the pump build and therefore designed for commerical and industrial use.
