  • E-Flow Mains Water Pressure Booster from Mac3

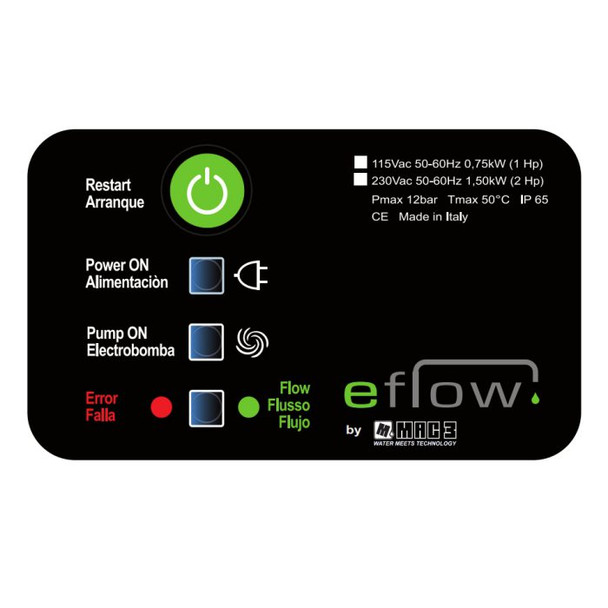

  • Simple to use control panel for the E-Flow.

Pump Pressure Booster - E-Flow

£55.00

Prices include VAT

SKU:
VEFC002M00
Quantity:

Product Description

Inline Pump Pressure Controller for Boosting Low Mains Water Pressure

Pump control for pressure boosting by flow detection with built-in dry-run protection.

Perfect for home (domestic) header tank boosting or in-line boosting of low mains water pressure.

If you need to adjust the pressure the E-control may be a better solution for you. If in doubt, please contact us we are happy to talk through your requirements.

The E-Flow boosts pressure automatically when water flow is detected in the pipe. When a flow is detected in the pipe, E-Flow runs the pump to increase pressure in the system until it detects that the flow has stopped. E-Flow can control a single phase pump of up to 2 Hp (1.5kW).

Clean water only.

Simple on-pipe installation with easy to read LED panel. Can be installed vertically or horizontally.

Should be installed in conjunction with a pressure vessel (expansion tank). We recommend the expansion tank is 10% of the maximum capacity of the pump. For example, if the pump can pump up to 100l per minute the pressure vessel should be 10l.


Technical Information

  • Inlet / Outlet : 1" BSP
  • Dry Run Protection Built-In
  • Digital Pressure / Status Display
  • Material: Calcium Filled Polypropylene / ABS
  • Power Supply Voltage: ~1 x 230VAC
  • Supply Voltage to Pump: ~1 x 230VAC
  • Pump Power: 1.5kW (2 Hp)
  • Pump Current: 25(8)A
  • Working Pressure: 1.5 - 8 bar
  • Maximum Overpressure: 12 bar
  • Min Flow 1l/min
  • Max Flow: 100l/min
  • Number of Operations: 30 Operations per minute max
  • Operating Temperature: 4oC to +50oC
  • Liquid Temperature: +1oC to +40oC
  • Liquid Type: Clean Water, No Solids, pH 5-9
  • Max Dimensions: 120mm wide x 100mm deep x 200mm high
  • Weight: 850g
  • Ingress Protection: IP65
