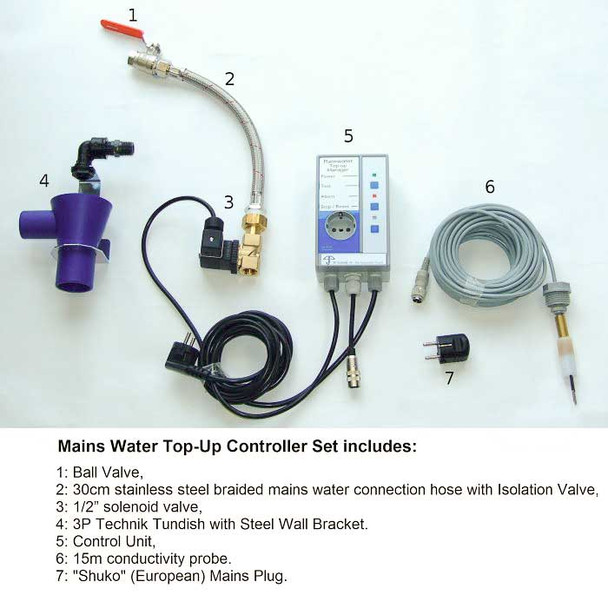

  • Components that make up the Mains Water Top-Up Controller Kit for Rainwater Harvesting Systems.

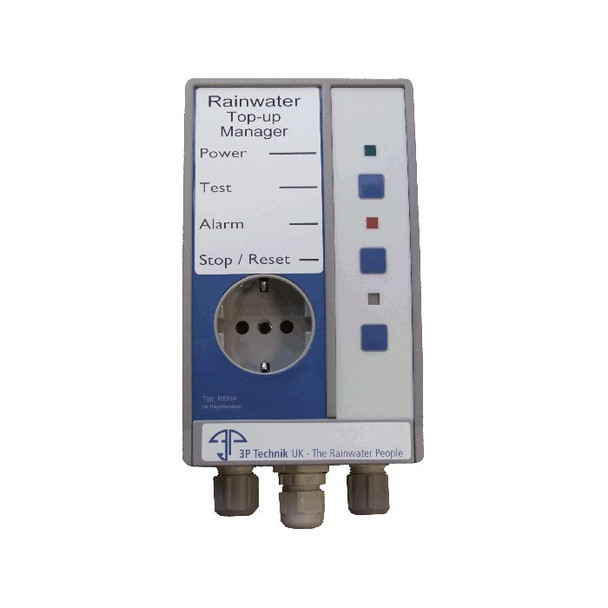

  • Mains Water Top-Up Controller Unit for Rainwater Harvesting Systems.

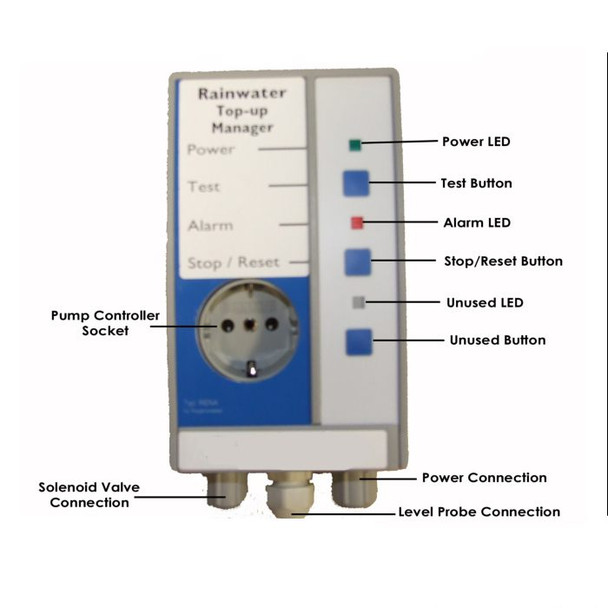

  • Annotated image of the Mains Water Top-Up Controller Unit for Rainwater Harvesting Systems.

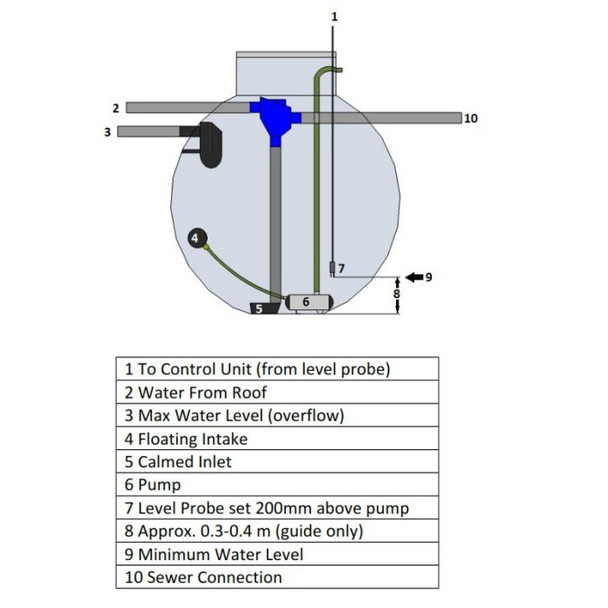

  • A diagram of a typical Rainwater Harvesting Storage Tank with Pump, Filters and Level Sensor.

Mains Water Top-up Controller Kit for Rainwater Harvesting Systems

£330.00

Prices include VAT

SKU:
TCA5000950
Quantity:

Product Description

Water Tank Level Controller with alarm using Water Level Sensor

The Best-selling 3P Top-Up Controller Set senses when the rainwater stored in your Water Tank gets too low and automatically adds enough mains water so that you can continue to flush toilets etc until the next time it rains. This ensures a year round supply of water to appliances in low rainfall periods.

It doesn't fill the tank, instead when the water in the tank reaches the low water level (that you define), the solenoid valve opens to top-up the tank with mains water until the level sensor is fully submerged. The Controller then continues to fill the tank for a a further 1 minute. This avoids adding too much water, ensures enough is added to prevent excessive top-up cyles and therefore protects your pump from over working.

The Controller uses a solid state conductivity sensor to sense low water level, avoiding the movement and accuracy issues of a float switch. Conductivity sensors experience no mechanical wear during use leading to long lifespan and reliability.

The Controller comes with leak detection built into the software so that you can act on any faults in the system as quickly as possible, saving water and time. If a leak it detected the Controller halts operation and alerts the user. This prevents potential water wastage due to tank or duct failure. or failure of the solenoid valve.

The Top-Up Controller is designed to work with automatic pumps. Pump isolation is optional using the front power socket, and allows the Controller to isolate the pump during a top-up cycle to avoid water useage exceeding the rate of replenishment.

Water is topped up via a BSEN13076 and BS8515 compliant tundish. The 3P Tundish acts as a Type AA air gap to comply with BS EN 13076: Devices to prevent pollution by backflow of potable water. The 3P Tundish itself and its’ ½” feed nozzle are both freely rotatable in the wall mounting bracket (supplied).

It is recommended that installation is carried out by a qualified electrician. The Controller must be installed on a dedicated circuit and protected by a 10A fused outlet to protect the pump and controller. Installation instructions are included with the Controller.

Simple to use. Comes with Installation Instructions and Trouble Shooting Guide.

Included Components

(see image above for reference numbers)

  1. Ball Valve, for isolating mains water supply,
  2. 30cm stainless steel braided mains water connection hose with Isolation Valve,
  3. 1/2” solenoid valve,
  4. 3P Technik Tundish with Steel Wall Bracket (DN40 overflow, DN50 outlet).
  5. Control Unit,
  6. Conductivity Level Probe with 15m of cable (this can be extended to order, up to 100m. It carries a very low voltage/current - contact us for details).
  7. "Shuko" (European) Mains Plug. This is supplied in order to allow you to connect any pump to the European style mains socket on the front of the Control Unit.

Technical Information

Control Unit

  • Dimensions (W x H x D): 97mm x 163mm x 62mm
  • Weight: 0.5 kg
  • Supply voltage: AC 230-240 V 50 Hz
  • Nominal Power Consumption: 5w (excluding pump)
  • Internal fuse:  32 mA
  • Pump power outlet socket: AC 230-240 V, max. 10A (fused)
  • Mains Plug Fuse: T 10 A
  • Operating Temperature Range Ambient: 0 °C to +40 °C
  • Electrical Protection class: II (DIN 57 700)
  • Ingress Protection: IP 20 (EN 60529)
  • Noise immunity: According to EN 50082-1
  • Noise suppression: According to EN 50081-1

Level Probe

  • Supply voltage: AC 6 V
  • Probe current: 1.2 mA
  • Cable length: 15m (max. 30m)
  • Dimensions of probe (L x Ø): 87mm x 30mm
  • Weight: 0.2 kg
  • Principle of operation: Conductivity
  • Medium: Clean water

Solenoid Valve

  • Dimensions (W x H x D): 95mm x 80mm x 100mm
  • Weight: 0.5 kg
  • Supply voltage: AC 230-240 V 50 Hz
  • Power consumption: max. 5.5 VA
  • Connection cable: 3m
  • Mounting position: Any
  • Medium: Clean water
  • Maximum pressure: 12 bar
  • Flow rate at 4 bar inlet pressure and open outlet: approx. 50 l/min
  • Connection: Inlet: ¾” BSP union nut with in-line filter
  • Function: Closed when de-energised
  • Protection: IP 56 (EN 60529)
  • Outlet: ½” BSP female thread
