Product Description
Inline Adjustable Pump Pressure Controller
Adjustable pump pressure controller with dry run protection built-in.

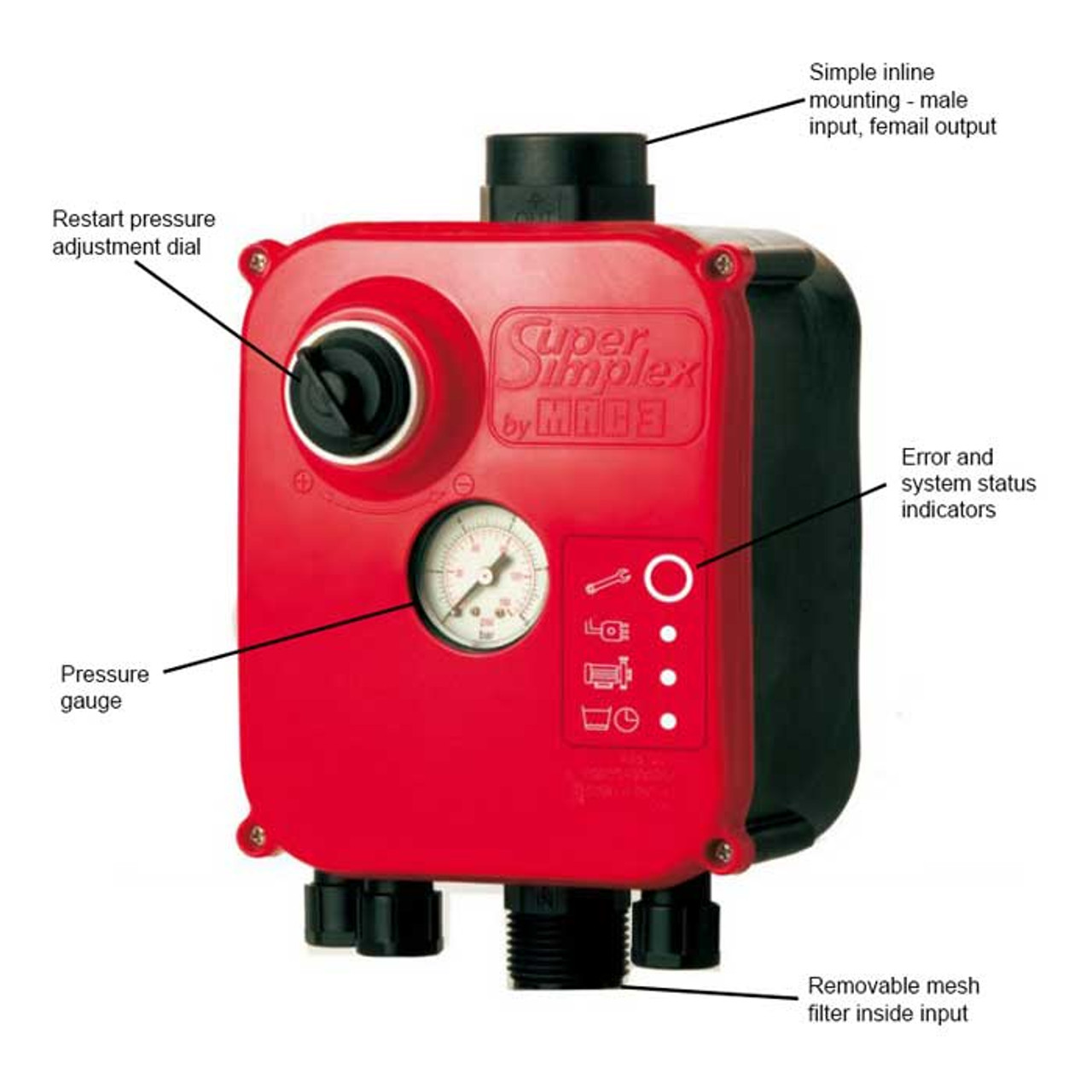

Mac3 SuperSimplex E is an adjustable pump pressure controller. It uses pressure and flow sensing to decide when to run the pump. This electronic version has built-in dry run protection.

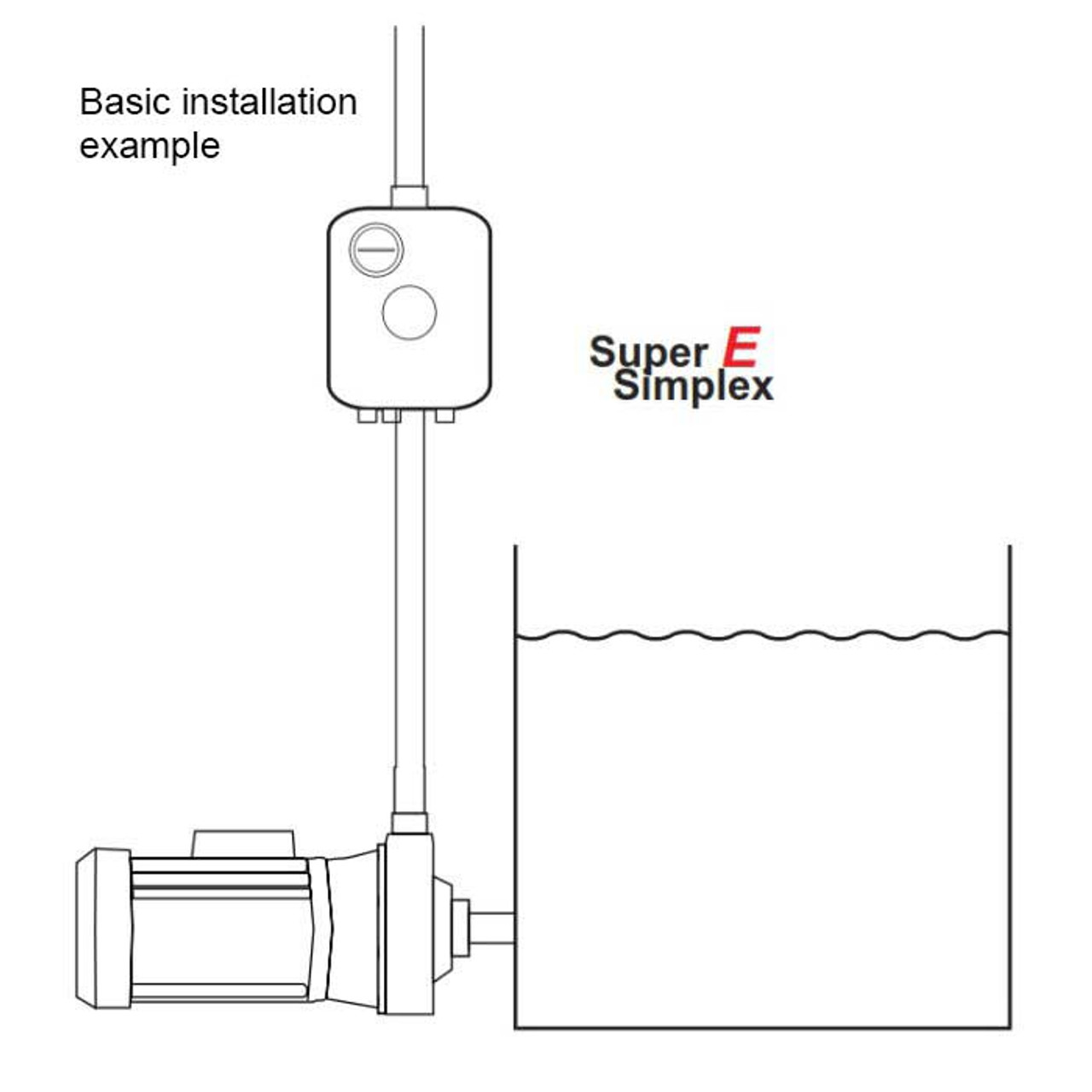

Simple to install the unit is mounted on-pipe with a 1” (25mm) threaded male connector on the input side and a female connector on the output. It can be mounted either vertically or horizontally as required.
Directly controls pumps up to 2Hp (1.5kW). Designed for clean water only.
Technical Information
- Inlet: Male 1" BSP
- Outlet: Female 1" BSP
- Dry Run Protection Built-In
- Digital Pressure / Status Display
- Material: PA6 FV
- Power Supply Voltage: ~1 x 230VAC
- Supply Voltage to Pump: ~1 x 230VAC
- Pump Power: 1.5kW (2 Hp)
- Pump Current: 25(8)A
- Working Pressure: 1.5 - 8 bar
- Maximum Overpressure: 12 bar
- Restart Pressure: 0.8 - 2 bar
- Min Differential Pressure: 1.5 bar
- Max Flow: 100l/min
- Operating Temperature: 4oC to +50oC
- Liquid Temperature: +1oC to +40oC
- Liquid Type: Clean Water, No Solids, pH 5-9
- Max Dimensions: 250mm wide x 155mm deep x 450mm high
- Weight: 900g
- Ingress Protection: IP54
Documents
- SuperSimplex E Brochure (pdf).
- SuperSimplex E Manual (pdf).
