24v submersible water pump

A stainless steel 24v dc water pump suitable for boats, domestic/industrial boosting, rainwater harvesting, surface irrigation, tank transfer, electric vehicle mount applications, zero-emission mobile washdown.

Pumped liquid: Clean cold water without abrasives or solids.

The X-AJE10024 is a low voltage (24v dc) water pump. It is a self priming centrifugal jet pump that is available with or without electronic pressure control. For submerged, underground or surface mounting. The main flanges are in brass for extra longevity and durability against heat/frost.

This automatic 24v submerisble pump includes pressure control, anti-blocking system, leak detection, and dry run protection with automatic restart.

Available with 1hp motor (requires 29A current).

Water cooled, single stage impeller/diffuser with venturi. Supplied with 10m cable.

Pump Warranty

This is a high quality professional pump that comes with a 2 year warranty when properly installed. SteelPumps are designed to be serviceable long into the future with common service components located behind an easy to remove electrical cover. The capacitor, pressure switch, flow sensor and control unit are all easily accessed.

Pump Repairs and Servicing

Disassembly of the entire pump is straightforward using basic tools, and ALL parts, including nuts and bolts, are available to order individually from the manufacturers website: wwww.steelpumps.co.uk. There are no corrodible mechanical parts within the pump, no potted electronics, no crimped wiring (everything unplugs). Service diagrams and information provided on request.

While other brands are ‘production engineered’ to be assembled fast and never taken apart, Steelpumps can be maintained for as long as spares are made. They are designed to last.

Optional Extras

Pump to Water Tank Connectors

A range of Pump to Tank Connectors are available on this site. Each are quick and easy to install.

Order separately from the following pages:

• Pump to Tank Connectors for 1" pump inlets.

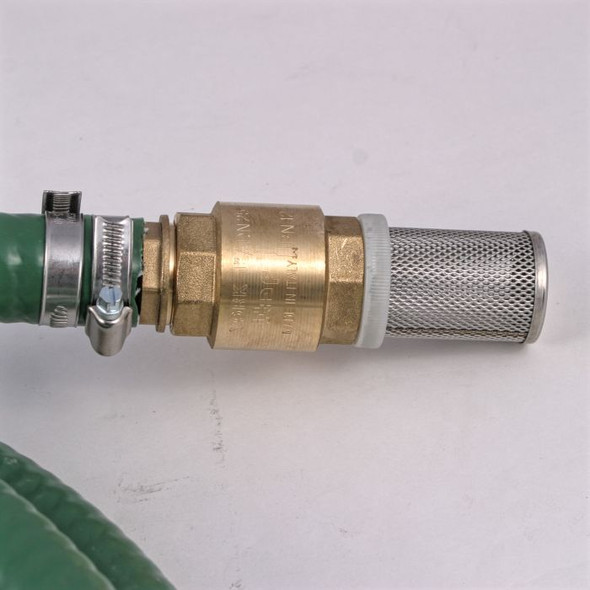

• Suction Hose Kits for 1" pump inlets.

Technical Information

• Pumped liquid: Clean cold water without abrasives or solids.
• Motor: 24v DC
• Max bar: 3.5 bar
• Max flow: 40l/min.
• Inlet Size: 1"
• Outlet Size: 1.25"
• Dimensions: 200mm wide x 477mm long
• Weight: 18Kg
• Waterproof protection rating: IP68
• Pump Type: Water cooled, automatic
• Motor Body: Stainless 304.
• Rotor Shaft: Stainless 420.
• Supporting Flanges: Brass.
• Impeller, Diffuser and Venturi: Noryl.
• Electrical cover: Stainless 304.
• Liquid temperature range: +2°C to +37°C.
• Air temperature: max +45°C.
• Maximum depth: 5m.
• Calibrating pressure rate switch: 1.5 bar.
• Cable Length: 10m with plug.

Documents

• X-AJE 100 24 Brochure including flow curves (pdf).
• SteelPumps Additional Guide (pdf)
• SteelPumps Commissioning Checklist (pdf)

Included Components

• SteelPump
• Non Return Valve (NRV)
• 10m Cable with plug
• Full Installation Instructions
