Battery Operated Water Tank Level Sensor

Water Tank Level Indicator for water tanks. The LED display bar lights up in sequence to indicate the level of liquid within the tank.

Suitable for Water Tanks, Slimline water tanks, Rainwater Tanks, Grey Water, Groundwater, Floodwater, basically any conductive fluid that won't damage the sensing wires.

Not suitable for Oils, fuels or purified water.

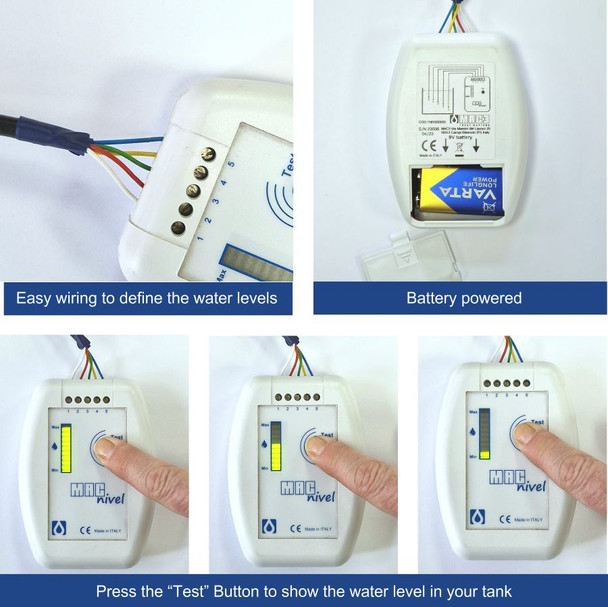

Battery operated, activated when the "Test" Button is pressed. Requires 9V battery (PP3) - not included. Therefore suitable for checking water levels in off-grid water tanks like, caravans, motorhome and boats.

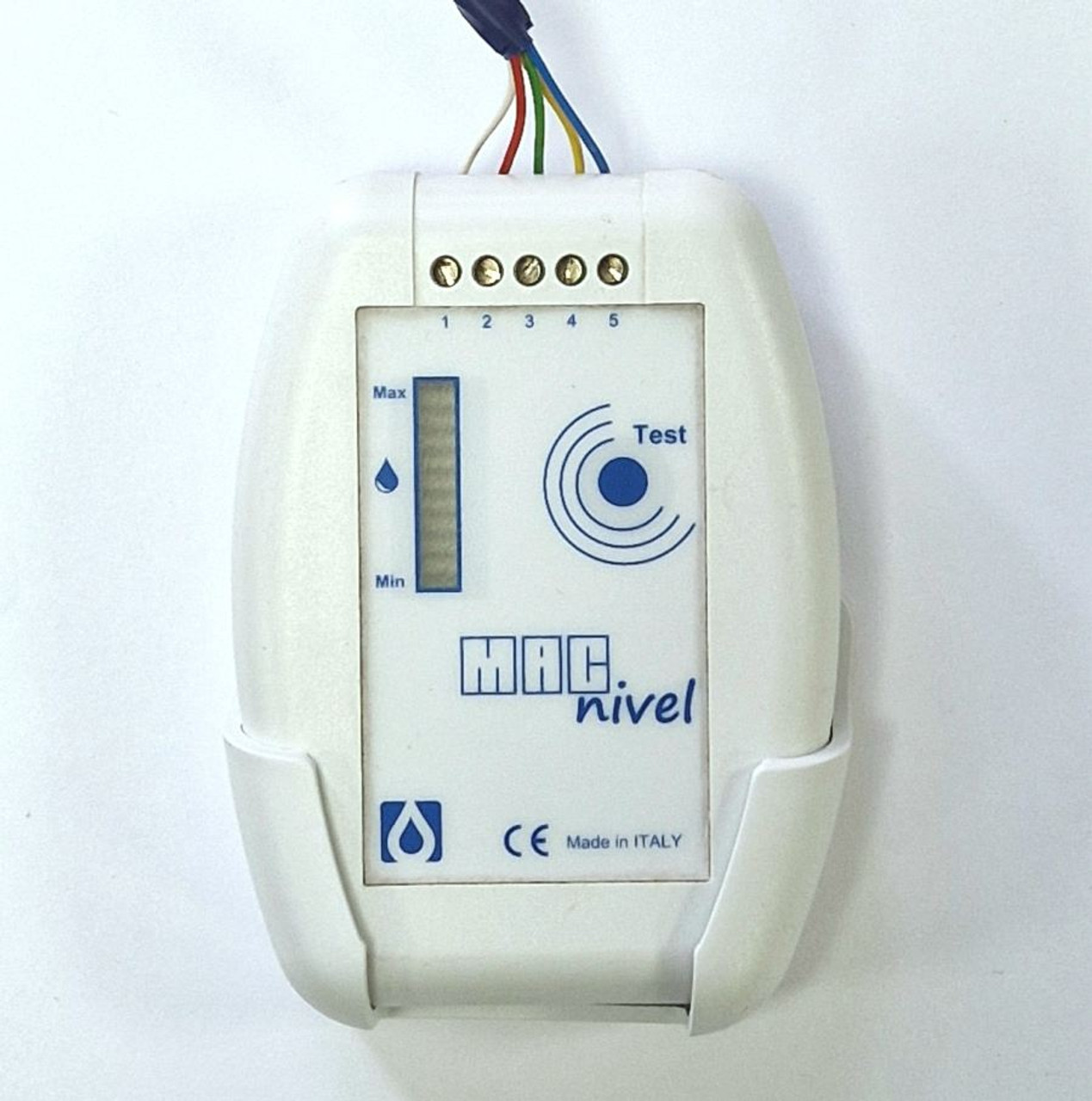

Comes with support cage for Wall Mounting.

Comes with or without 5 Core Electronic Cable - choose the length of cable you require from the drop-down menu above.

The level indication is based on the lengths of cable you define and therefore is flexible to your requirements. Maxiumum cable length is about 30m.

Some assembly required. You will need to strip the long cable and cut back each of the 5 cores to the desired lengths then wire them into the Indicator panel. This is easily done with wire strippers and a screwdriver (not included).

Technical Information

• Suitable for liquid level indication in conductive fluids
• 5 different levels can be defined
• Maximum Sensor cable length: 30m
• Battery operated (9V - PP3)
• Weight of Display Panel: 70gm
• Dimensions: H: 106, W: 80, D:30
• CE Mark

Documents

• MacNivel - Battery Operated Water Tank Level Sensor Brochure (pdf).
• MacNivel Manual (pdf).

Included Components

• MacNivel Tank Level Display
• Support for Wall Mounting
• Instructions with Wiring Diagram

Further Information

MacNivel: Battery operated water level indicator for Motorhomes and Caravans - blog post
