These Push-fit Long Link Kits enable the extended connection of a 3P Filter Collector to the 800L Wall Tank or any other sealed tank where it is not possible to access inside the tank to tighten a back-nut.

How to connect the Rain Diverter to your Water Butt

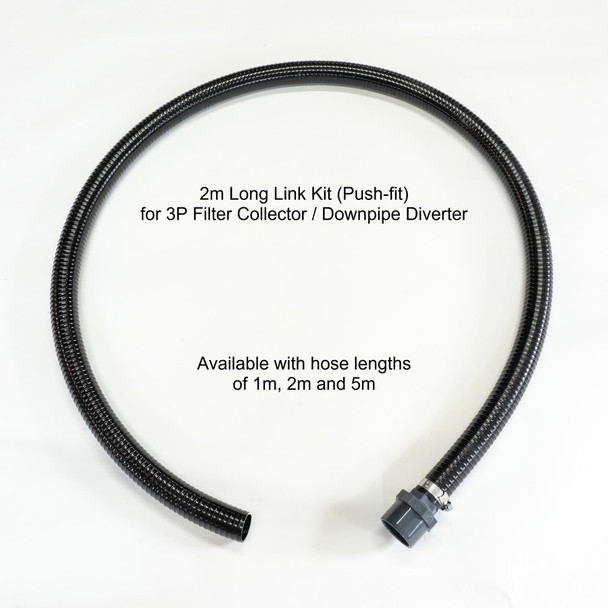

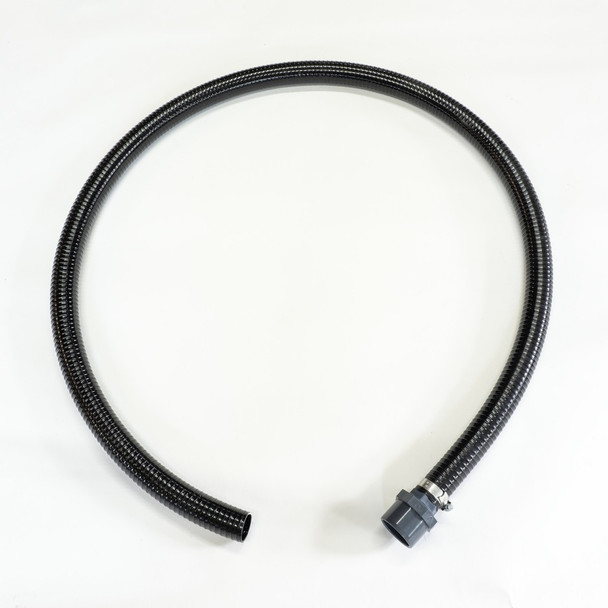

It makes a push-fit seal, either to a heavy duty rubber grommet (if you purchase the Holesaw Set too, or as supplied when purchased with the wall tank) or direct into the side of a tank, and is available in either 0.5m, 1m, 2m or 5m lengths of 32mm (1.25") medium duty PVC hose.

Important: Lengths over 1m will need to be bracketed, or otherwise supported, across the wall to avoid sagging.

These kits are not suitable to work under pressure and are therefore not recommended to be used for tank-to-tank purposes.

Optional Extras

Holesaw & Grommet Set

This Hole Saw Set comes with Rubber Grommets. It enables you to cut holes into all types of plastic tanks and water butts.

It has cutting heads of 25mm, 32mm, 45mm and 58mm diameter. Comes complete with 2 rubber grommets for use with DN32 and DN50 pipes or hose.

Included Components

The following items come already assembled ready for you to connect to your Rain Diverter or 3P Filter Collector to your water butt/tank.

• 32mm (1.25") Medium duty hose of chosen length
• Hosetail
• Stainless Steel Hoseclip
• Reducing bush, PVC-U 50mm x 1", 16bar
