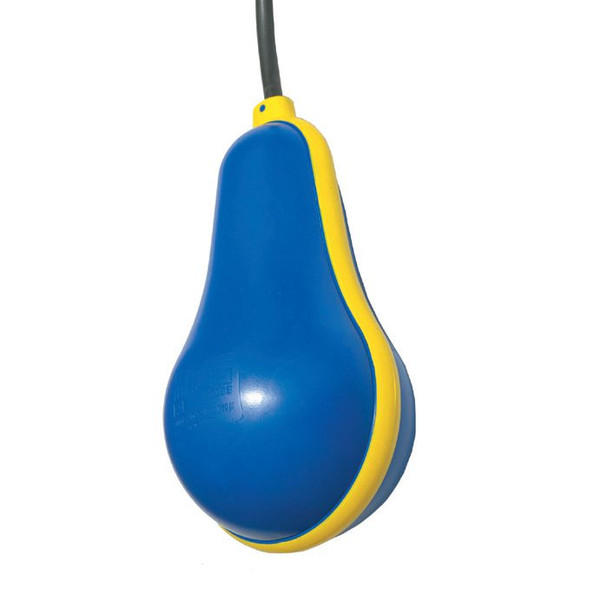

The Mac 5 Level Regulators are a float switch that allows electrical equipment to start and stop automatically (usually pumps, but also solenoid valves, alarms, etc.) when a prefixed level has been reached. Normally connected to a control panel or directly to the pump.

These Float Switches are specifically designed for Sewage Water, Industrial Waste Water with suspended residues and in turbulent water. It's heavy body, which is also bulky with a smooth surface makes it ideal for regulating sewage levels.

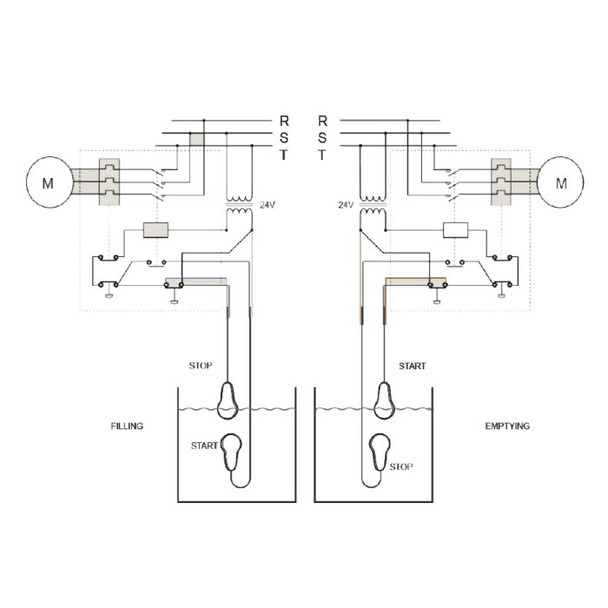

These Float Switches come with the a 3 core PVC cable (3x1) which can be used for filling or emptying according to the cables that have been connected.

The Float is a double liquid proof chamber for maximum reliabilty and a counterweight is built into the body of the float.

The switch angles are +10^o/-10^o a wider angle is also available, ask for details.

The Mac 5 Float Switch complies with CEI EN 60730 standard and therefore complies with the fundamental requisites of Directive 2006/95/CE, also complies with the standards IEC60079-0:2011-06 and IEC60079-15:2010-0. The device which can be defined as a tilting, floating switch has been specifically designed to operate in sewage.

Optional Extras

Cable Type

PVC: This float switch comes with PVC Cable as standard. This is a PVC sheathed cable with PVC insulated cores equal to or exceeding EU Harmonised Code H03VV-F and British CMA Code 3183Y. Light duty, suitable for temperatures of up to +60^oc.

H07RN-F: You can upgrade the float switch cable to H07RN-F. This is a heavy duty flex with rubber insulated cores and polychloroprene or equivalent outer sheath. Increased wear resistance and flexibility compared to PVC cable, suitable for temperatures of up to +90^oc.

H07BN4-F: You can upgrade the float switch cable to H07BN4-F. This is a heavy duty flex with rubber insulated cores and chlorosulphonated polyethylene or chlorinated polyethylene outher sheath. It has increased wear resistance and flexibility compared to PVC cable and greater oil resistance too. It's suitable for temperatures of up to +90^oc.

If in doubt about cable types, please contact us with details or your installation.

Waterproof 3 Way Cable Joiner

These Waterproof TeeTube T Electrical Cable Joint (3 cable entries) can be used to fit Float Switches to Pumps where pump is submersed in the water tank.

IP68 rated so therefore (assuming fitted correctly) perfect for use underwater and in situtations where the cable joint may be submersed or areas prone to occasional flooding. Also suitable for use in areas of high condensation or humidity like for example, water tank turrets, basements and manhole chambers. If in double please consult a professional before installing this item. For more details see the Waterproof 3 Way Cable Joiner page.

Technical Information

• Approval: ENEC / EC (ATEX approved Float Switch also available, contact us for details and lead time)
• Microswitch Features: 10(3)A 250V
• Operating Temperature: 0^oC to 50^oC
• Protection Rating: IP68
• Switch Angles: +10^o/-10^o (wider one also available +45^o/-45^o, ask for details.)
• Float Dimensions; Max Diameter: 117mm,  h: 222mm
• Float Weight: 1100g
• Float Volume: 1000cm³
• Max Depth: 2 bar
• Float Housing Material: Non-toxic polypropylene (PP), Colouring: Non-toxic, Blue and Yellow or Blue and Red
• Cable Material: PVC 3x1, H07RN-F, H07BN4-F
• Cable Length: 5m, 10m or 20m (other lengths available on request)

Document

• Mac5 Float Switch for Sewage Manual (pdf).
