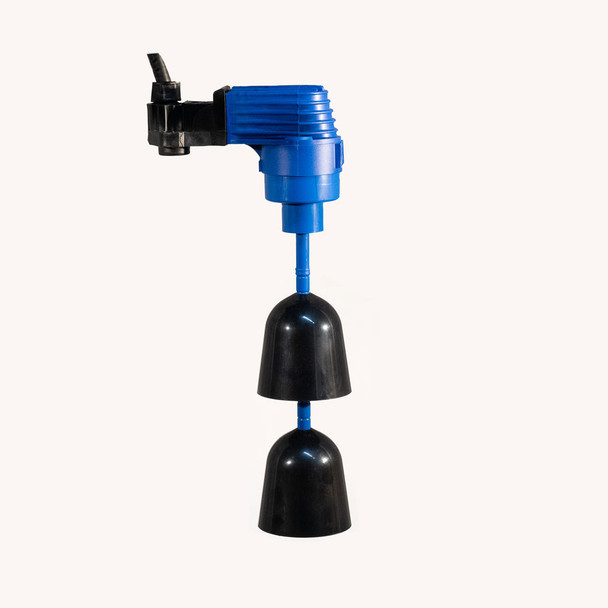

Compact Magnetic Float Switch for Dirty Water and Sewage Water

The new Mac3 AgmaW EVO is a compact wastewater float switch alternative, designed to be fitted vertically to a submersible pump. Unlike the previous model (Agma W) the EVO operates at an angle of +/- 20° from vertical. When used for pump control, Agma W EVO activates a connected pump when the water levels are high enough for pump use, and deactivates the pump when the water level has decreased to the set minimum.

The 25cm version is 2 x core and for emptying only. The 10m version is 3 x core and also for emptying only (but with Earth).

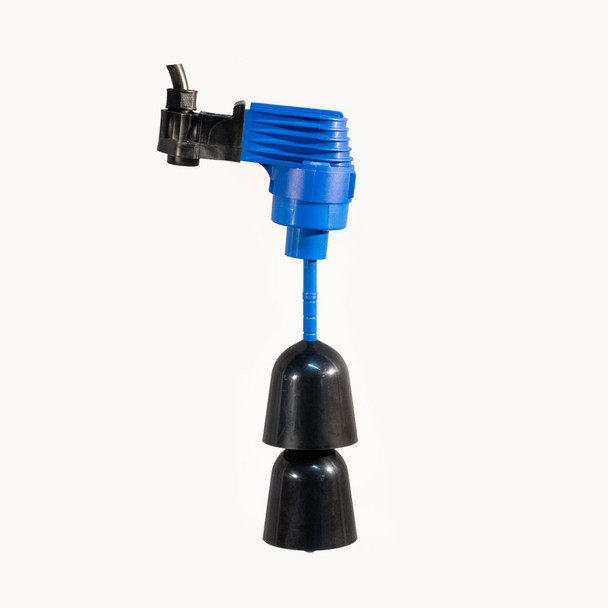

It has a magnetic float that moves vertically in response to the water level. The float activates a sealed microswitch (housed in the top blue section) which turns the pump on or off.

AgmaW EVO is designed for clean water, sewage, flood water and water containing solids and debris. Avoid using in water containing iron or other ferrous materials as these may affect operation.

It is IP68 rated ensuring effective protection against water and moisture ingress.

Typical uses include pumps designed for:

• Flood prevention sumps - in Flood Drainage Crates
• Small waste water tanks/sumps
• Narrow wells
• Irregular shaped tanks
• Tanks, sumps or wells with pipes or other obstructions inside

Avoid using in water containing iron or other ferrous materials as these may affect operation.

Technical Information

• Operating Temperature: 0^oC to 50^oC
• Max Load: 20(8)A 250V ~ Single Phase
• Max Operating Pressure: 0.5 Bar
• Working Liquid: clean water, sewage, flood water and water containing solids and debris

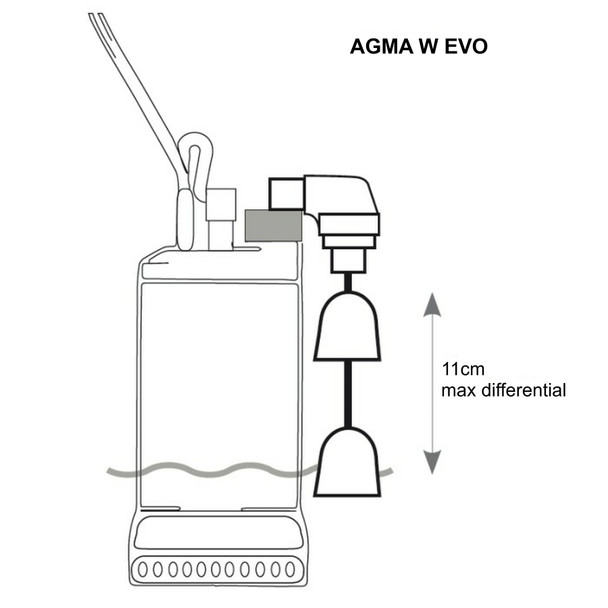

• Operating Range (level) 50 to 110mm
• Protection Rating: IP68
• Working Positon: Vertical +20^o/-20^o

• Float Dimensions; 60mm diameter x 235mm
• Float Weight: 270g
• Float Housing Material: Non-toxic polypropylene (PP)
• Cable Material: PVC 2 x 1 or 3X1 (contact us for other types)
• Cable Length: 25cm, 10m (contact us for other lengths)

Agma W EVO is designed to be used with clean water, sewage, flood water and water containing solids and debris.

Avoid using in water containing iron or other ferrous materials as these may affect operation.

The 10m cable type in the above options is a 3 Core PVC Flame Retardant Cable - other cable types and lengths are available, please contact us for details.
