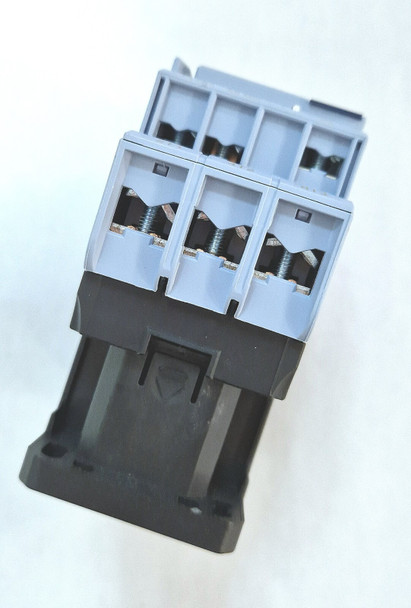

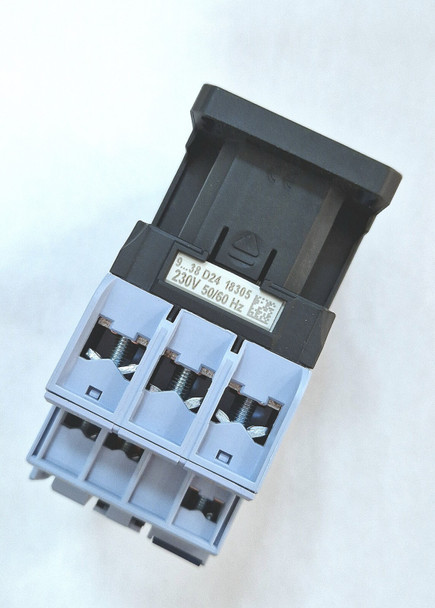

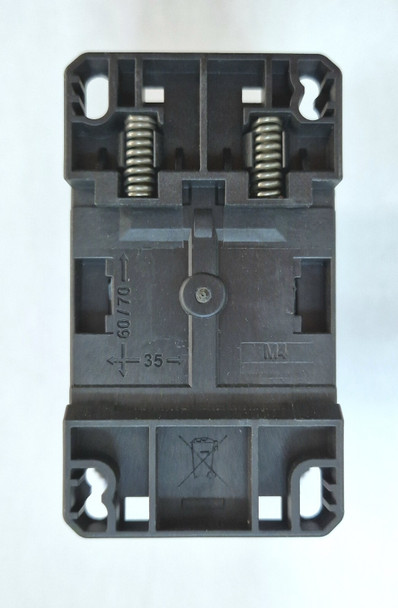

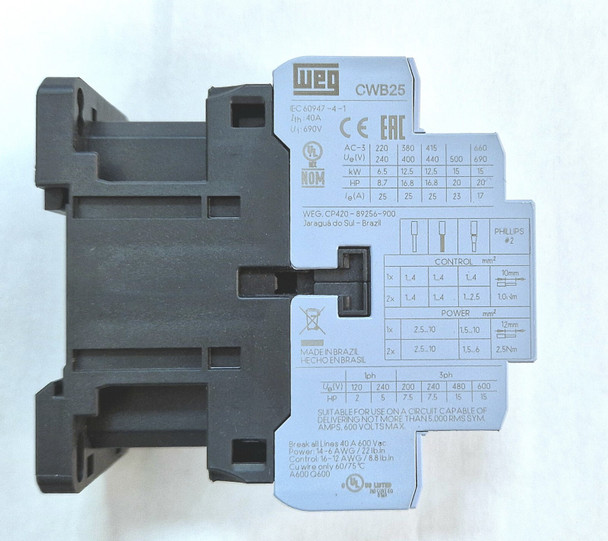

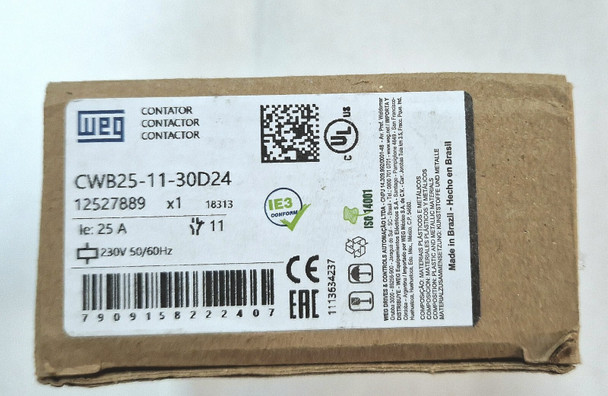

EG CWB CONTACTOR CWB25-11-30D24 - 230 V ac Coil, 3-Pole, 25 A, 11 kW, 3NO, 690

Modular, compact and highly reliable, this is a new, unused WEG contactor CWB25-11-30D24.

Manufactured with the best raw materials, high precision plastic injection moulds and stamping tools ensure reliable products.

Electric contacts have special silver alloys which provide excellent electric conductibility and high contact reliability.

The CWB series uses only nontoxic and eco-friendly materials that are safe and sustainable.

The contactors operate smoothly with a low level of disturbance.

To optimise space, the WEG contactors have a front channel for the passage of control cables.

Built in auxiliary contacts
Low consumption coils

Specifications

• Coil Voltage: 230 V ac
• Number of Poles: 3
• Contact Voltage Rating: 690 V ac
• Contact Current Rating:  25 A
• Series: CWB
• Power Rating: 11 kW
• Normal State Configuration: 3NO
• Number Of Auxiliary Contacts: 2
• Terminal Type: Screw
• Width: 45mm
• Length: 85mm
• Depth: 93mm
• Minimum Operating Temperature: -25°C
• Maximum Operating Temperature: +55°C
• Pole and Throw Configuration: 3PST
